Multi Channels Capsule Slip Ring For Motion Simulator

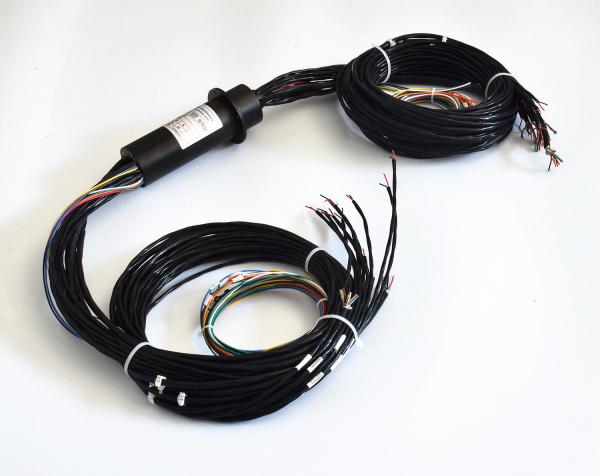

This slip ring looks like capsule slip ring,but its features are multi channels,64 circuits total,most wires are twisted shielded wire,outer diameter is 40mm ,compact size,working speed is 200rpm,inside contact material is gold to gold,housing material is aluminum alloy,the kind of slip ring is used for motion simulator.
Features
- Continuous transmission of signal or data under 360° unrestrained rotation
- Compact size,less noise
- Low torque, smooth rotation
Applications
- Instrument
- Military equipment
- Motion simulator
Optional
- Circuit number
- IP protection grade
- Operating speed
Specification
| ECN000-64P Specification | Picture |
| Circuit &Current | 36*1A,20*2A,8*3A |  |
| Voltage | 0- 240 VAC/VDC |
| Electrical noise | 10m Ω max |
| Dielectric strength | ≥1000V@50Hz(power) ≥300V@50Hz(signal) |
| Insulation resistance | ≥300MΩ@500VDC(power) ≥100MΩ@100VDC(signal) |
| Operating speed | 0-200 rpm |
| Contact material | gold to gold |
| Housing material | aluminum alloy |
| OD | Φ40mm |
| Operating temperature | -20~+60℃ |
| IP protection grade | IP54 |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
